Introduction: What Is the Geely Galaxy M9?

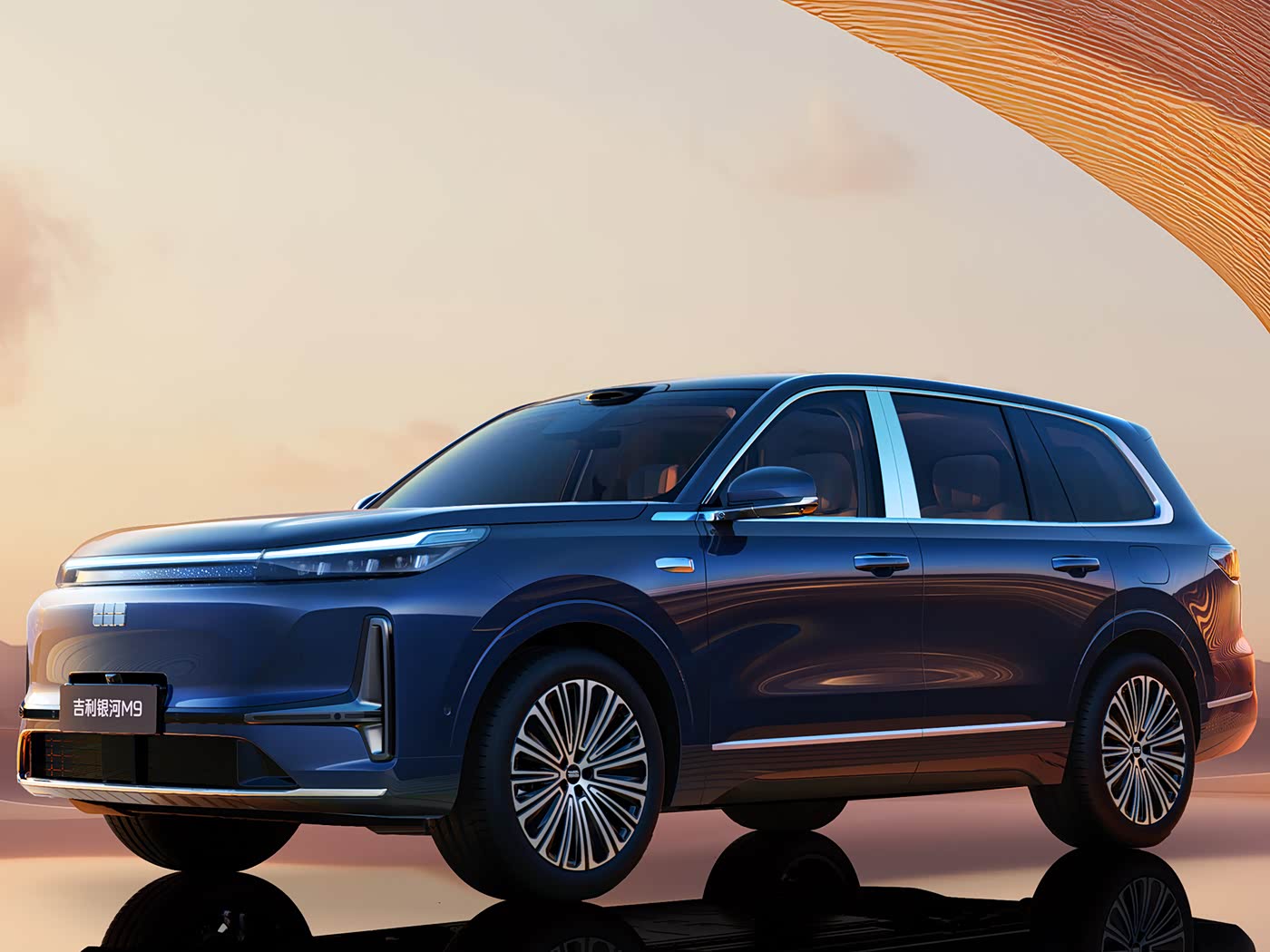

The Geely Galaxy M9 is the flagship SUV in Geely’s Galaxy product line — positioned as a premium mid-to-large three-row PHEV that blends high-performance electric propulsion with long-distance hybrid capability. The 2025 model, specifically the Galaxy M9 210km AWD Navigator Edition, represents Geely’s most ambitious entry into the premium electrified SUV segment.
Designed to compete with full-size electrified SUVs from both domestic Chinese brands and international luxury marques, the Galaxy M9 arrives with class-leading power figures, genuine 6-seat luxury, and an intelligent cabin powered by the Qualcomm Snapdragon 8295P chip and Flyme Auto OS.
This article breaks down every specification, feature, and performance metric of the Galaxy M9 — all drawn directly from Geely’s official configuration data.
Geely Galaxy M9: Key Specifications at a Glance
| Category | Specification |
|---|---|
| Manufacturer | Geely Auto |
| Vehicle Class | Mid-to-Large SUV |
| Powertrain | Plug-in Hybrid Electric Vehicle (PHEV) |
| Seats / Doors | 6 Seats (2-2-2), 5 Doors |
| Engine | 1.5T Turbocharged, 163 HP (120 kW), 4-cylinder |
| Electric Motors | Triple Motors — Front + Rear |
| System Combined Power | 640 kW (870 PS) |
| System Combined Torque | 1,165 N·m |
| Transmission | 3-Speed Dedicated Hybrid Transmission (DHT) |
| Drive Type | Electric All-Wheel Drive (AWD) |
| 0–100 km/h | 4.5 seconds |
| Top Speed | 210 km/h |
| Battery | 41.46 kWh LFP (CATL, Aegis Battery) |
| CLTC Pure Electric Range | 210 km |
| CLTC Total Range | 1,300 km |
| WLTC Total Range | 1,130 km |
| Length × Width × Height | 5,205 × 1,999 × 1,800 mm |
| Wheelbase | 3,030 mm |
| Emission Standard | China VI |
| Launch Date | September 17, 2025 |
Performance & Powertrain: Triple-Motor Electric AWD
Engine and Hybrid Architecture
Under the hood, the Galaxy M9 employs a 1.5-liter turbocharged 4-cylinder engine (model BHE15-CFZ) producing 163 PS (120 kW) at 5,000 rpm and 255 N·m of torque between 2,500–3,500 rpm. This internal combustion engine functions primarily as a range extender and high-speed cruising partner within the PHEV system.
The engine features:
- Aluminum alloy cylinder head and block
- DOHC valvetrain with 4 valves per cylinder
- Direct fuel injection
- 92# gasoline compatibility
- Transverse mount layout
Triple-Motor Electric Drive
The true performance highlight of the Galaxy M9 is its triple-motor electric drive system:
| Motor Position | Max Power | Max Torque |
|---|---|---|
| Front Motor | 180 kW | 350 N·m |
| Rear Motor | 340 kW | 560 N·m |
| Total Motor Output | 520 kW (707 PS) | 910 N·m |
Both motors are permanent magnet synchronous units, arranged in a front + rear layout. When combined with the engine output, the system delivers a staggering 640 kW (870 PS) of combined power and 1,165 N·m of combined torque.
This output propels the Galaxy M9 from 0 to 100 km/h in just 4.5 seconds — putting it firmly in performance SUV territory, competitive with vehicles costing significantly more.
Transmission: 3-Speed DHT
The power is managed by a 3-speed Dedicated Hybrid Transmission (DHT), which optimizes power delivery across low-speed EV driving, mid-speed hybrid cruising, and high-speed highway operation. This is more sophisticated than the single-speed transmissions found in many extended-range EVs, offering superior efficiency across diverse driving conditions.
Range, Battery & Charging
Pure Electric Range
The Galaxy M9’s 41.46 kWh lithium iron phosphate (LFP) battery — sourced from CATL and equipped with Geely’s proprietary Aegis Battery safety technology — delivers:
- CLTC Pure Electric Range: 210 km
- WLTC Pure Electric Range: 170 km
These figures place the M9 among the top tier of PHEVs for daily zero-emission commuting capability. Most drivers can complete their daily errands and commutes on pure electric power alone.
Combined Range
When the fuel tank (60-liter capacity) and battery work together:
- CLTC Total Range: 1,300 km
- WLTC Total Range: 1,130 km
This effectively eliminates range anxiety — a full tank and a full charge can take you from Shanghai to Beijing without refueling.
Fuel Efficiency
| Metric | Value |
|---|---|
| WLTC Combined Fuel Consumption | 0.63 L/100km |
| CLTC Fuel Consumption (Lowest Charge State) | 5.5 L/100km |
| WLTC Fuel Consumption (Lowest Charge State) | 6.25 L/100km |
| Combined Fuel & Electric Consumption | 3.29 L/100km |
| Energy Consumption | 22.9 kWh/100km |
These efficiency numbers are remarkably low for a vehicle of this size and performance capability.
Charging Capabilities
- DC Fast Charging: 30% to 80% in 0.25 hours (15 minutes) at compatible fast-charging stations
- Charging Port Location: Both AC and DC ports on the left rear side of the vehicle
- V2L (Vehicle-to-Load): 6 kW AC and 6 kW DC external discharge — sufficient to power camping equipment, tools, or even another EV in an emergency
- Battery Cooling: Direct cooling system for optimal thermal management during high-power charging and discharging
Dimensions & Exterior Design
Size and Proportions
| Dimension | Measurement |
|---|---|
| Length | 5,205 mm |
| Width | 1,999 mm |
| Height | 1,800 mm |
| Wheelbase | 3,030 mm |
| Front Track | 1,704 mm |
| Rear Track | 1,706 mm |
| Curb Weight | 2,530 kg |
| GVWR | 3,030 kg |
At 5,205 mm long with a 3,030 mm wheelbase, the Galaxy M9 offers a commanding road presence. The near-2-meter width provides substantial interior space, while the relatively long wheelbase (significantly longer than many competitors in this class) supports both ride comfort and the 6-seat layout’s space requirements.
Aerodynamics and Practicality
- Drag Coefficient (Cd): 0.285 — impressive for a large SUV
- Approach Angle: 19°, Departure Angle: 17°
- Fuel Tank: 60 liters
- Trunk Volume: 328 liters (all seats up) to 2,171 liters (seats folded)
- Tire Specs: 255/50 R20 all around, with tire repair kit (no full-size spare)
Exterior Features
The Navigator Edition comes comprehensively equipped:
- Wheels: 20-inch aluminum alloy
- Lighting: Full LED low and high beams, LED daytime running lights, adaptive high beam, auto headlights, follow-me-home function, ADAS auxiliary light
- Sunroof: Segmented fixed panoramic sunroof
- Tailgate: Power-operated with hands-free sensor and position memory
- Grille: Active shutter grille for improved aerodynamics
- Windows: Acoustic laminated side glass, rear privacy glass
- Exterior Mirrors: Power-adjustable, power-folding, with memory, heating, auto-dimming, and auto-fold on lock
- Wipers: Rain-sensing with rear wiper
Interior, Comfort & Seating
Cabin Layout: 2-2-2 Configuration
The Galaxy M9 adopts a six-seat 2-2-2 layout with captain’s chairs in the second row — a configuration typically reserved for true luxury MPVs and high-end SUVs. This layout ensures every passenger enjoys individual space without the compromises of a bench seat.
Seat Materials and Adjustments
| Seat Row | Material | Adjustments | Features |
|---|---|---|---|
| 1st Row (Driver) | Genuine Leather | Fore/Aft, Recline, Height (2-way), Lumbar (4-way), Active Side Bolsters | Heating, Ventilation, Massage, Headrest Speakers, Memory |
| 1st Row (Passenger) | Genuine Leather | Fore/Aft, Recline, Leg Rest, Lumbar (4-way) | Heating, Ventilation, Massage, Memory, Rear control button |
| 2nd Row | Genuine Leather | Fore/Aft, Recline, Lumbar, Leg Rest (Power) | Heating, Ventilation, Massage, Tray Tables |
| 3rd Row | Genuine Leather | Recline (Power) | Heating |
Key Comfort Features
- Genuine leather upholstery across all three rows
- Power-adjustable seats with memory function for both driver and front passenger
- Heating, ventilation, and massage functions for first and second rows
- 3rd row heating — a rare feature even in premium SUVs
- Rear tray tables behind the front seats, ideal for work or dining on the go
- Power-folding rear seats for convenient cargo expansion
- Front and rear center armrests with rear cup holders
Infotainment & Intelligent Cabin
Display Ecosystem
The Galaxy M9’s cabin is built around a multi-screen architecture:
| Display | Size | Specification |
|---|---|---|
| Center Infotainment | 30-inch | 6K resolution, Touch LCD |
| Instrument Cluster | 12.66-inch | Full LCD, Color |
| AR-HUD | 32-inch equivalent | Augmented Reality Head-Up Display |
| Rear Entertainment | 17.3-inch | Single rear screen |
Processing Power
The intelligent systems are powered by the Qualcomm Snapdragon 8295P automotive-grade chip — currently one of the most powerful in-vehicle processors available. This ensures:
- Ultra-responsive touch interactions
- Seamless multi-screen content rendering
- Future-proof performance for OTA updates
Operating System: Flyme Auto
The Galaxy M9 runs Flyme Auto — Geely’s co-developed intelligent cockpit system. Key capabilities include:
- Voice Assistant: Activated by “Hi, Eva” — supports continuous conversation, six-zone voice pickup, see-and-say functionality
- Voice Control Scope: Multimedia, navigation, phone, climate control, windows, seat heating/ventilation/massage
- Phone Connectivity: Apple CarPlay, HUAWEI HiCar, Carlink, and Flyme Link
- Face Recognition and Voiceprint Recognition for personalized driver profiles
- App Store for downloading additional applications
- Built-in KTV function for in-car entertainment
Connectivity
- 4G network with Wi-Fi hotspot capability
- OTA (Over-the-Air) software updates
- Bluetooth hands-free calling and audio streaming
- Type-C ports: 2 in front, 4 in rear (up to 60W charging)
- 50W wireless phone charging pad in the front
- 220V/230V power outlet onboard
Audio System
The Galaxy M9 features a 27-speaker premium audio system complemented by 2 exterior speakers. The sound system is enhanced by 256-color active ambient lighting that can sync with music and driving modes.
Advanced Driver Assistance Systems (ADAS)
Hardware Platform
The Galaxy M9 deployment is built on a powerful perception stack:
| Component | Quantity / Specification |
|---|---|
| ADAS Chip | NVIDIA Orin-Y |
| ADAS System | Thousand Miles Vastness H5 (千里浩瀚H5) |
| ADAS Level | L2 |
| Front Perception Camera | Dual (Binocular) |
| Total Cameras | 11 external + 2 in-cabin |
| Ultrasonic Sensors | 12 |
| Millimeter-Wave Radars | 3 |
| LiDAR Sensors | 1 |
Driving Functions
The H5 system provides comprehensive L2 assistance across both city streets and highways:
- Full-Speed Adaptive Cruise Control
- Lane Keeping Assist with Lane Centering
- Traffic Sign Recognition
- Traffic Light Recognition
- Automatic Parking Assist (parking, remote parking, memory parking)
- Track Reverse function
- Lane Change Assist with automatic ramp exit/entry
- Hands-off Detection
- RCTA (Rear Cross Traffic Alert) with Door Open Warning
Safety Systems
The Galaxy M9 includes a comprehensive active and passive safety suite:
Passive Safety:
- Driver and front passenger airbags
- Front and rear side airbags
- Front and rear head curtain airbags
- Front center airbag (between driver and passenger)
- ISOFIX child seat anchors
Active Safety:
- ABS with Electronic Brake-force Distribution (EBD)
- Brake Assist (BA)
- Traction Control (ASR/TCS)
- Electronic Stability Control (ESC/ESP)
- Tire Pressure Monitoring System (TPMS)
- Lane Departure Warning
- Forward and Rear Collision Warning
- Automatic Emergency Braking (AEB)
- Fatigue Driving Alert
- Sentry Mode (surveillance when parked)
- Built-in dash cam
- Roadside assistance call function
Chassis & Driving Dynamics
Suspension System
The Galaxy M9 employs a premium suspension setup:
- Front: Double Wishbone Independent Suspension — typically found in luxury and performance vehicles, offering superior camber control and ride quality
- Rear: Five-Link Independent Suspension — provides excellent wheel articulation and isolation from road imperfections
This combination delivers a balance of comfort and handling precision uncommon in large SUVs.
Steering and Braking
- Power Steering: Electric Power Steering with variable assist
- Front Brakes: Ventilated Disc
- Rear Brakes: Ventilated Disc
- Parking Brake: Electronic Parking Brake with Auto Hold
- Hill Start Assist and Hill Descent Control standard
Driving Modes
Selectable drive modes include:
- Sport — Maximum power response
- Off-Road — Optimized traction control for unpaved surfaces
- Snow — Reduced torque delivery for slippery conditions
- Energy Recovery System for regenerative braking adjustment
Climate Control & Air Quality
The Galaxy M9 treats cabin atmosphere as a luxury feature:
- Automatic Climate Control with multi-zone temperature management
- Rear Independent Air Conditioning
- Rear Air Vents across all rows
- PM2.5 Air Filtration
- Negative Ion Generator for air purification
- Air Quality Monitor with real-time display
- Built-in Refrigerator for cold beverages on long journeys
Smart Connectivity & Mobile App
The Galaxy M9 connects to a comprehensive mobile application enabling remote control over:
- Door lock/unlock and window operation
- Remote vehicle start
- Charging management and scheduling
- Climate control pre-conditioning
- Vehicle status monitoring and diagnostics
- Vehicle location tracking and “find my car”
- Owner services including charger/parking/gas station finder
- Service appointment booking
- In-car biometric monitoring system
Competitive Positioning
The Geely Galaxy M9 210km AWD Navigator Edition enters a rapidly growing premium PHEV SUV market. Its key competitive advantages include:
- Class-leading power: 640 kW system output and 4.5-second 0–100 km/h acceleration rival performance SUVs costing significantly more
- Exceptional electric range: 210 km CLTC pure electric range exceeds most PHEV competitors
- True 6-seat luxury: 2-2-2 captain’s chair layout with heating, ventilation, and massage across three rows
- Advanced ADAS: NVIDIA Orin-Y chip with LiDAR, 11 cameras, and comprehensive L2 city/highway coverage
- Premium cabin tech: 30-inch 6K display, Snapdragon 8295P, 27-speaker audio, AR-HUD
At the 248,800 RMB price point (based on configuration code M9-2488), the Galaxy M9 delivers a feature set and performance envelope that challenges vehicles in considerably higher price brackets.
Technical Specifications Summary
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Length × Width × Height | 5,205 × 1,999 × 1,800 mm |
| Wheelbase | 3,030 mm |
| Track (Front/Rear) | 1,704 / 1,706 mm |
| Curb Weight | 2,530 kg |
| Gross Vehicle Weight | 3,030 kg |
| Seating Capacity | 6 (2-2-2) |
| Doors | 5 |
| Fuel Tank | 60 L |
| Trunk Volume | 328–2,171 L |
| Drag Coefficient | 0.285 Cd |
Powertrain
| Parameter | Specification |
|---|---|
| Engine | 1.5T L4 Turbo, 163 PS / 120 kW, 255 N·m |
| Front Motor | 180 kW / 350 N·m |
| Rear Motor | 340 kW / 560 N·m |
| Total Motor Output | 520 kW (707 PS) / 910 N·m |
| System Combined | 640 kW (870 PS) / 1,165 N·m |
| Transmission | 3-Speed DHT |
| Drive Type | Electric AWD |
| 0–100 km/h | 4.5 s |
| Top Speed | 210 km/h |
Battery & Range
| Parameter | Specification |
|---|---|
| Battery Type | LFP (Lithium Iron Phosphate) |
| Battery Capacity | 41.46 kWh |
| Cell Supplier | CATL |
| Battery Technology | Aegis Battery (神盾电池) |
| CLTC Pure Electric Range | 210 km |
| WLTC Pure Electric Range | 170 km |
| CLTC Total Range | 1,300 km |
| WLTC Total Range | 1,130 km |
| DC Fast Charge (30–80%) | 0.25 h (15 min) |
| V2L Discharge | 6 kW (AC + DC) |
Chassis
| Parameter | Specification |
|---|---|
| Front Suspension | Double Wishbone Independent |
| Rear Suspension | Five-Link Independent |
| Front Brakes | Ventilated Disc |
| Rear Brakes | Ventilated Disc |
| Parking Brake | Electronic |
| Tires | 255/50 R20 |
| Steering | Electric Power Steering |
ADAS & Safety
| Parameter | Specification |
|---|---|
| ADAS Chip | NVIDIA Orin-Y |
| ADAS Level | L2 |
| Cameras | 11 external + 2 in-cabin |
| Ultrasonic Sensors | 12 |
| mmWave Radars | 3 |
| LiDAR | 1 |
| Airbags | 7 (incl. front center) |
Frequently Asked Questions
What is the pure electric range of the Geely Galaxy M9?
The Galaxy M9 offers 210 km of CLTC-rated pure electric range (170 km WLTC), making it one of the longest-range PHEVs in its class. Most daily driving can be completed without using any gasoline.
How fast is the Galaxy M9?
The Galaxy M9 accelerates from 0 to 100 km/h in 4.5 seconds, powered by its triple-motor AWD system delivering 640 kW (870 PS) and 1,165 N·m of combined output.
How many seats does the Galaxy M9 have?
The Galaxy M9 features a 6-seat 2-2-2 layout with independent captain’s chairs in the second row and power-adjustable third-row seats — all upholstered in genuine leather with heating across all rows.
What is the total driving range?
With a full 60-liter fuel tank and fully charged 41.46 kWh battery, the Galaxy M9 achieves 1,300 km CLTC total range (1,130 km WLTC).
Does the Galaxy M9 support fast charging?
Yes. The Galaxy M9 supports DC fast charging, going from 30% to 80% in approximately 15 minutes.
What infotainment system does the Galaxy M9 use?
The Galaxy M9 runs Flyme Auto on a Qualcomm Snapdragon 8295P chip, featuring a 30-inch 6K center display, 12.66-inch instrument cluster, 32-inch AR-HUD, and a 17.3-inch rear entertainment screen. It supports Apple CarPlay, HUAWEI HiCar, Carlink, and Flyme Link.
What ADAS features are included?
The M9 comes with L2 ADAS powered by the NVIDIA Orin-Y chip, including adaptive cruise control, lane keeping, traffic sign and signal recognition, automatic parking, remote parking, memory parking, track reverse, and highway/city navigation assist — supported by 11 cameras, 3 mmWave radars, 12 ultrasonic sensors, and 1 LiDAR unit.
Data source: Geely Auto official configuration table. Specifications may vary by market and production batch. All range figures are based on CLTC and WLTC test cycles; actual results depend on driving conditions, climate, and usage patterns.
